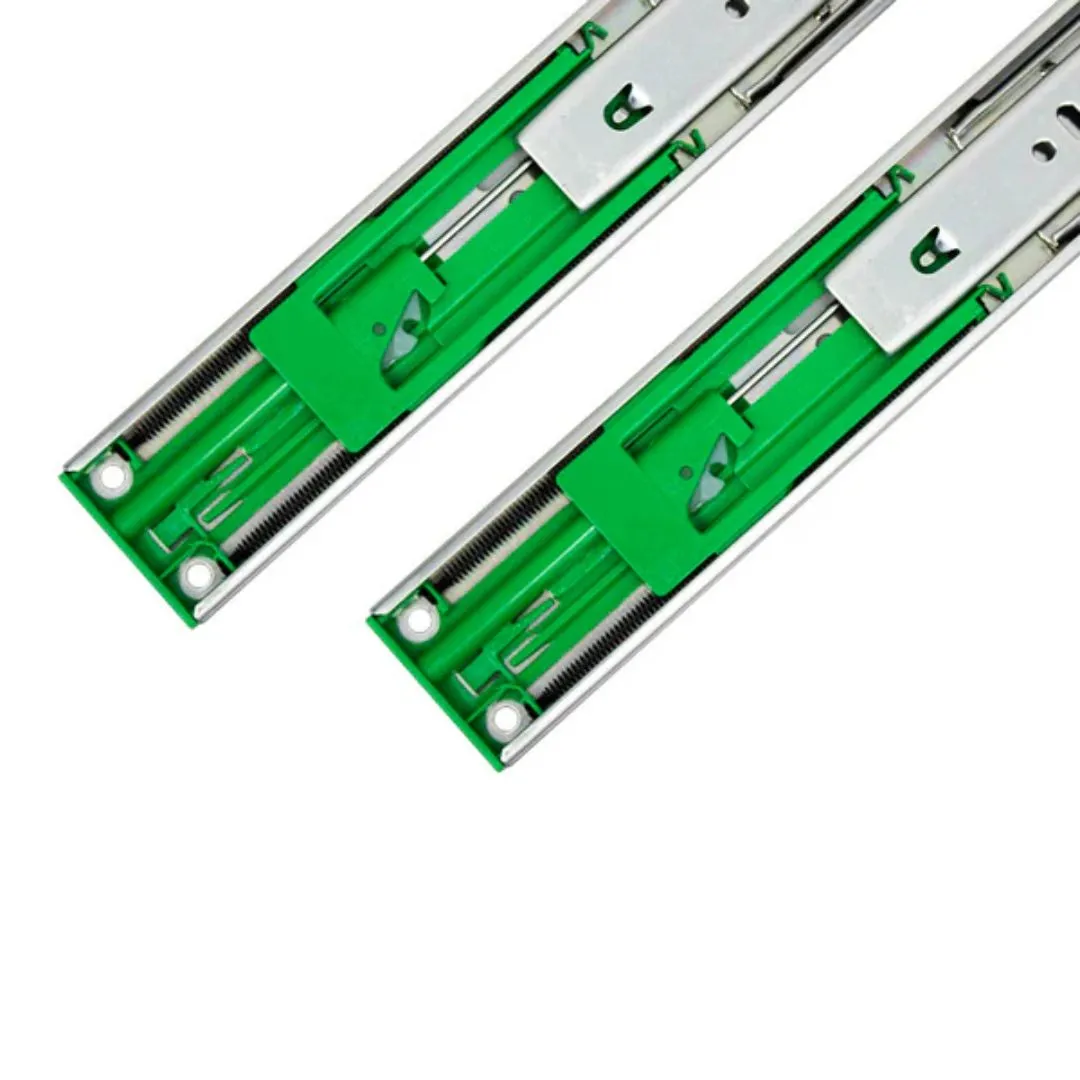

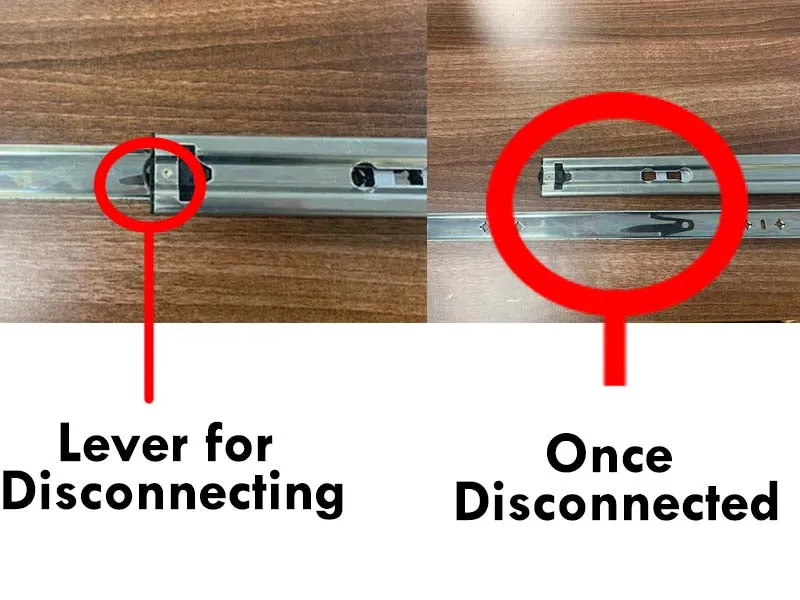

Our IntAfit 500mm Double Extension Soft Close Drawer Runner with a weight bearing capacity of 45KG per pair is classified as a medium duty drawer slide in our range. The quick release lever allows for easy installation and the built in soft close mechanism prevents drawers from slamming shut.
Features
- Type: Soft Close
- Quick Release: Yes

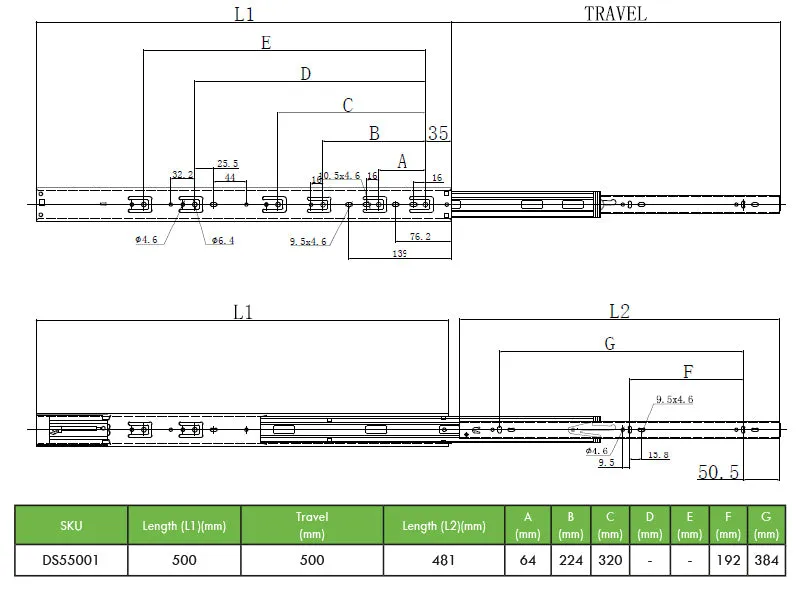

- Closed Length: 500mm
- Open Length: 1000mm

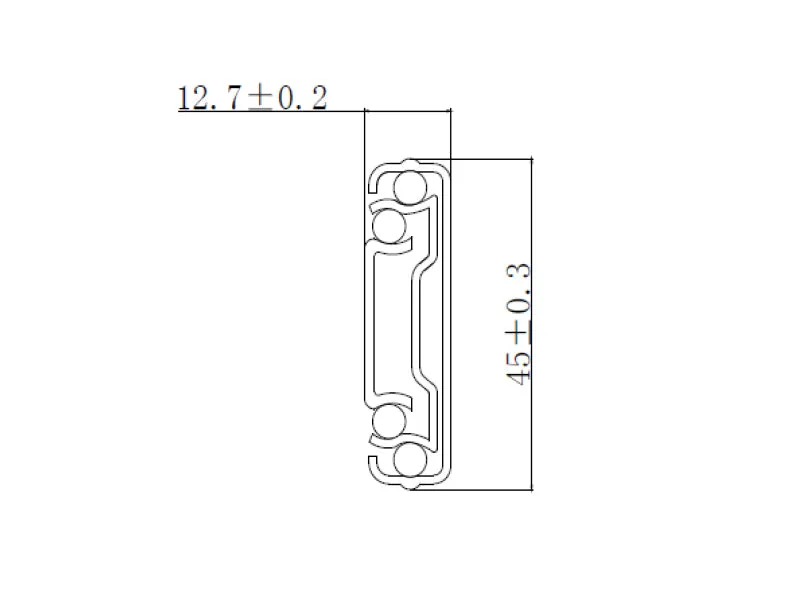

- Profile Height: 45mm
- Profile Width: 12.7mm
- Load Rating: 45kg (based on 450mm length)
- Range Sizes: 350 - 550mm
- Finish: Zinc Plated

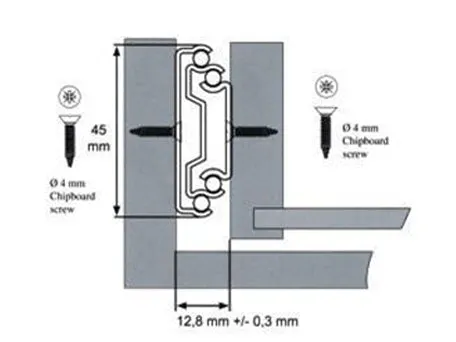

- Fixing Method: Screw or Rivet
- Installation: Side Mounted (Base mounting these runners is not recommended)
Applications
- Office Furniture
- Bedroom Furniture
- Tool box storage units
- Vehicle conversions
- Caravans
- Motorhomes
- Computer server storage
- Shop fitting
Recommended Screws
